    GROW K215-V1.3+R502-F Self-locking Relay Output DC10-30V Fingerprint Control Board+R502-F Waterproof Small Fingerprint Module

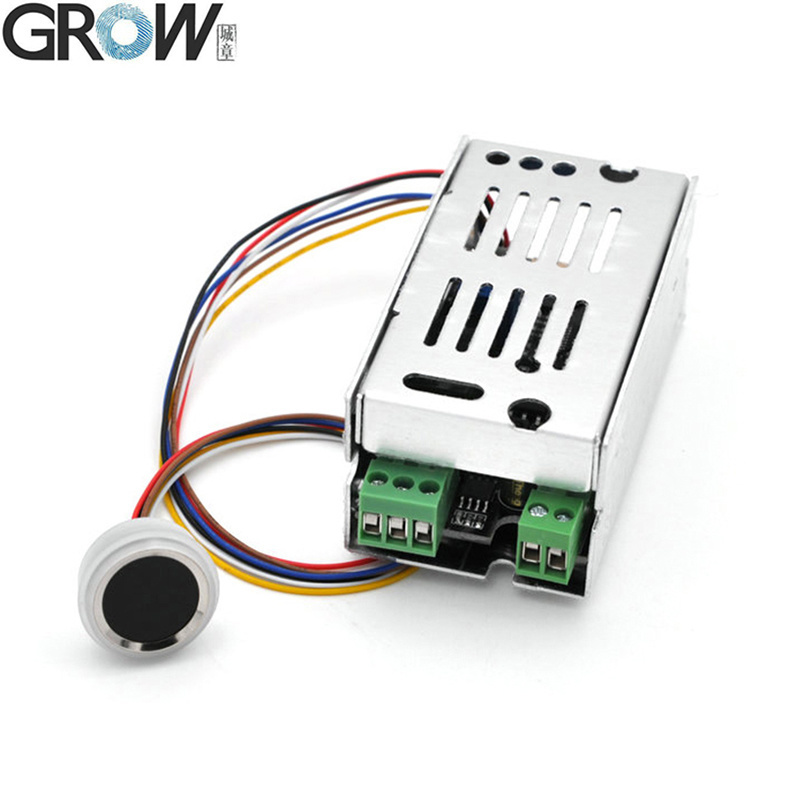

    Grow K215-V1.3+R502-F Waterproof Fingerprint Access Control Board for Car

    K215-V1.3 Technical Parameters

    ·Power supply: DC10--30V,
    ·Stand-by current for control board: 40mA
    ·Fingerprint capacity: 200
    ·Size: 36.4*70mm
    ·Relay Function: Normally Open or 1-20 second

    K215-V1.3 Operation Instruction

    1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.


    2. When back to factory default, press SET button until hear "Di" and music,means initialization operation successful.


    3. Mode Selection Usage: when chose 2, operating time of the relay is 1s-20s after pass fingerprint,can adjust by knob. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.


    Note:

    In factory status, any fingerprint can pass, after register fingerprints, this function is invalid;

    Set sleep mode, long press (about 10s) the SET button and do not release your finger until hearing the "DiDiDi" sound and the music,means initialization operation successful.



    K215-V1.3 has a wide range of use, which can be used in automobile control, access control and other occasions.

    K215-V1.3 can be connected with R502-A,R502-AW,R502-F,R503,R503-M22 fingerprint module.

    R502-F Specifications

    ModelR502-F
    TypeCapacitive Fingerprint Module
    InterfaceUART(TTL)
    Resolution508 DPI
    VoltageDC 3.3V
    Fingerprint Capacity200
    Sensing array192*192 pixel
    Working current20mA
    Standby currentTypical touch standby voltage: 3.3V, Average current: 2uA
    Fingerprint module external sizeDiameter 21.5 (mm)
    Fingerprint module inner sizeDiameter 19.5 (mm)
    Fingerprint module height9 (mm)
    Effective collection areaDiameter 15.5 (mm)
    ConnectorSH1.0-6Pin
    LED ControlYES
    LED ColorRGB
    Scanning Speed< 0.2 second
    Verification Speed< 0.3 second
    Matching Method1:1; 1:N
    FRR≤1%
    FAR≤0.001%
    Work environment-20C ---60C
    Work Humidity10-85%
    Anti-static capacity15KV
    Abrasive resistance intensity1 million times
    Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

    Files

    ·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
    ·Provide User Manual

    K215-V1.2 Test video on Youtube: https://youtu.be/bRQP0JuzqYo

    If need SDK files.Pls contact us.
