KS200 Technical Parameters
4*AA battery or DC3.7-6.5V, Motor Output, Low Power Consumption,
Admin/User Function·Power supply:DC3.7V--6.5V
·Stand-by mode current:<7uA
·Output:DC5--6V,1.5A(Peak:2.5A)
·Administrator Fingerprint:20 pieces
·User Fingerprint:180 pieces
·Low voltage alarm:4.8V (dry battery)
3.5V (Lithium battery)
Motor Working Mode:1. Forward 0.5 seconds → Rest 5 seconds → Reverse 0.5 seconds.
2. Forward 1 seconds → Rest 5 seconds → Reverse 1 seconds.
3. Forward 1 seconds
4. Forward 2 seconds
5. Self-locking Mode
6. Hold Mode
KS200 Operation Instruction
1 Register Administrator Fingerprint:Long press the SET button,release finger when shows blue indicator
light on the control board,now the fingerprint module indicator
flash fast,put the same admin finger with multiple times in
fingerprint collection area until hearing music means fingerprint
register successful. Fingerprint can be registered continuously and
it can register 20 pieces administrator fingerprint; if no need
adding fingerprint more, waiting a few seconds to exit. If the
administrator is fully registered,it will automatically exit the
administrator registration state after hear "DiDiDi" and will start
register user fingerprint if press SET button again.
2 Register User Fingerprint:Press the administrator fingerprint until the blue indicator light
flash fast and hear the music,means can add user fingerprint. Put
the same user finger with multiple times in fingerprint collection
area until hearing music means fingerprint register
successful.Fingerprint can be registered continuously when system
in register state; if no need adding fingerprint more, waiting a
few seconds.
3 Delete User Fingerprint:Press the administrator fingerprint until red indicator light flash
fast and hear music,means user fingerprints are deleted.
4 Factory Setting:Long press the SET button,until shows red indicator light on the
control board and hear the music, then release the finger,means
initialization operation successful.
Note:
1.Any fingerprint can be used when factory default, and this
function disabled after fingerprint registered.
2.When the voltage is less than DC4.7V, the red light lightens,
means the low voltage warning.
3.In hold mode, when register user fingerprint, press the
administrator's fingerprint first. After passing, lift the finger
and press the administrator's fingerprint again. When the light
flashes and hear the music sounds, the user's fingerprint can be
registered.

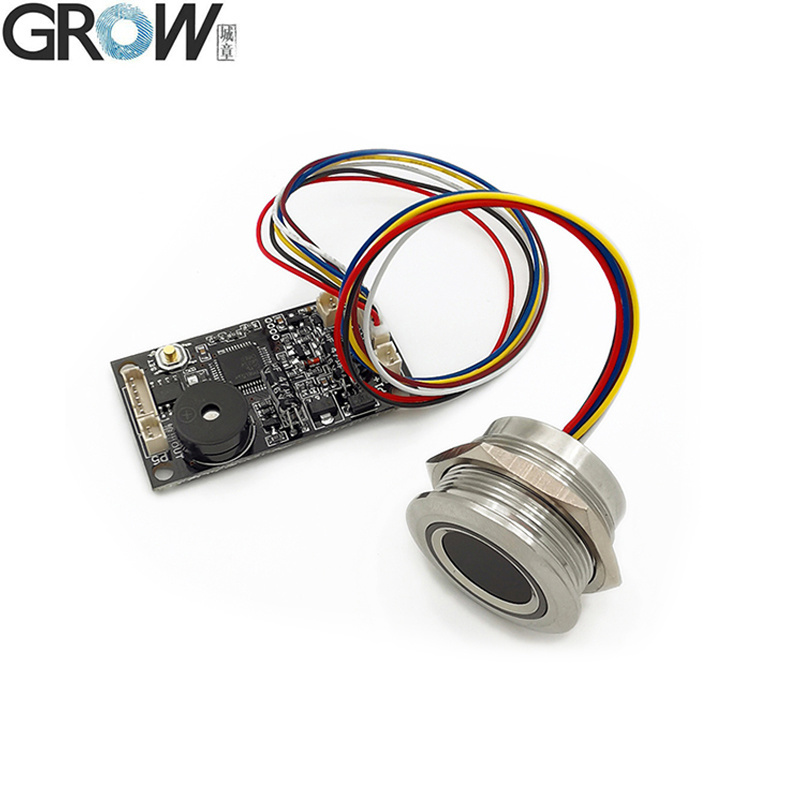

KS200 suitable for R502-A,R502-F,R502-AW,R503 fingerprint module.R503 Specifications| Model | R503 |
| Type | Capacitive Fingerprint Module |
| Interface | UART(TTL) |
| Resolution | 508 DPI |
| Voltage | DC 3.3V |
| Fingerprint Capacity | 200 |
| Sensing array | 192*192 pixel |
| Working current | 20mA |
| Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
| Fingerprint module external size | Diameter 28 (mm) |
| Fingerprint module inner size | Diameter 23.5 (mm) |
| Fingerprint module height | 19 (mm) |
| Effective collection area | Diameter 15.5 (mm) |

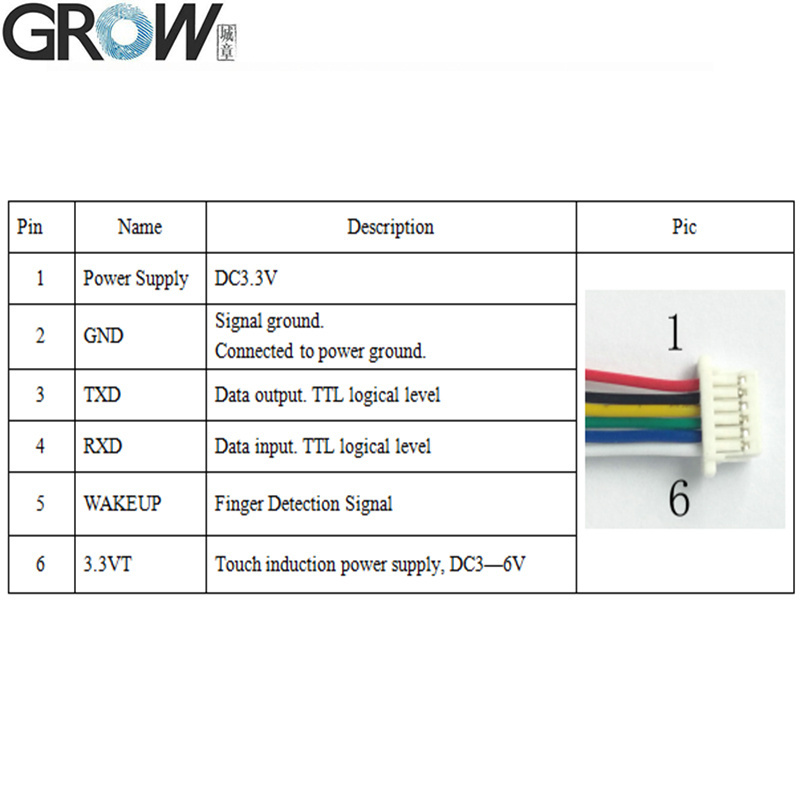

| Connector | MX1.0-6Pin |
| LED Control | YES |
| LED Color | Blue and Red |
| Scanning Speed | < 0.2 second |
| Verification Speed | < 0.3 second |
| Matching Method | 1:1; 1:N |
| FRR | ≤1% |
| FAR | ≤0.001% |
| Work environment | -20C ---60C |
| Work Humidity | 10-85% |
| Anti-static capacity | 15KV |
| Abrasive resistance intensity | 1 million times |
| Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
