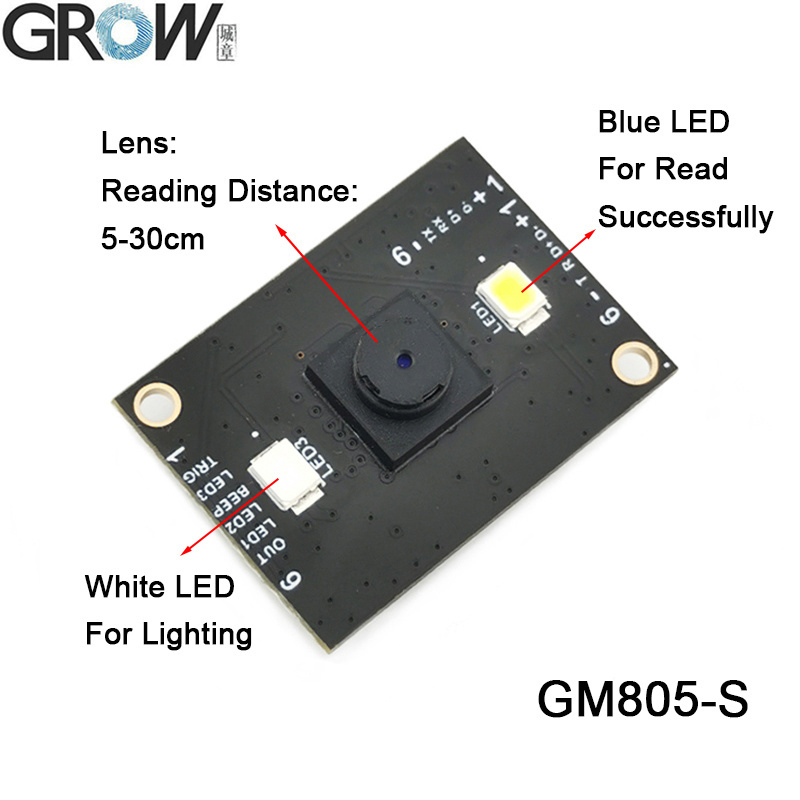

Grow GM805 Series DC5V USB/Ttl232 Barcode Scanner 1d/2D Qr Bar Code Reader
| Parameter | Performance |
| Sensor | CMOS |
| Scan Mode | 640*480 |
| Lighting | White LED |
| Indicator Light | Blue LED |
Read Code Type | 1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,GS1 Composite,GS1-Databar (RSS) |
| 2D: QR Code, Data Matrix, PDF417 | |
| GM805-S Reading Distance | 5-30cm |
| GM805-L Reading Distance | 7-50cm |
| Contrast* | >25% |
| Scan Angle** | Roll: 360° Pitch: 65° Yaw: 65° |
| Viewing Angle | 67° (Horizontal) 53° (Vertical) |
| Accuracy of reading* | ≥10mil |
| Parameter | Performance |
| Interface | TTL-232/USB |
| Size(mm) | 28*20 mm |
| Weight | 2.1 g |
| Prompting mode | Buzzer LED Indicator |
| Operating Voltage | 5V |
| Operation Current | 70mA(Max) |
| Standby Current | ≤6mA(Typical) |
| Startup time | ≤250mS (Typical) |
| Parameter | Performance |
| Operatingtemperature | -20ºC~60ºC |
| Storage Temperature | -40ºC~+70ºC |
| Operating Humidity | 5%~95%(Non-Condensing) |
| Environmental Light | Normal indoor light source |
| Fall | Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly) |
|
|
