    GROW GM811 Series DC5V 1d 2D USB UART Interface Barcode Scanner Module Reader Support Windows Arduino PDF417

    Grow GM811 Series DC5V 1d 2D USB Uart Barcode Scanner Module Reader
    Description


    GM811 series have GM811-S and GM811-L model.
    The only difference between GM811-S and GM811-L is the lens.
    GM811-S lens reading distance is 5-30cm.

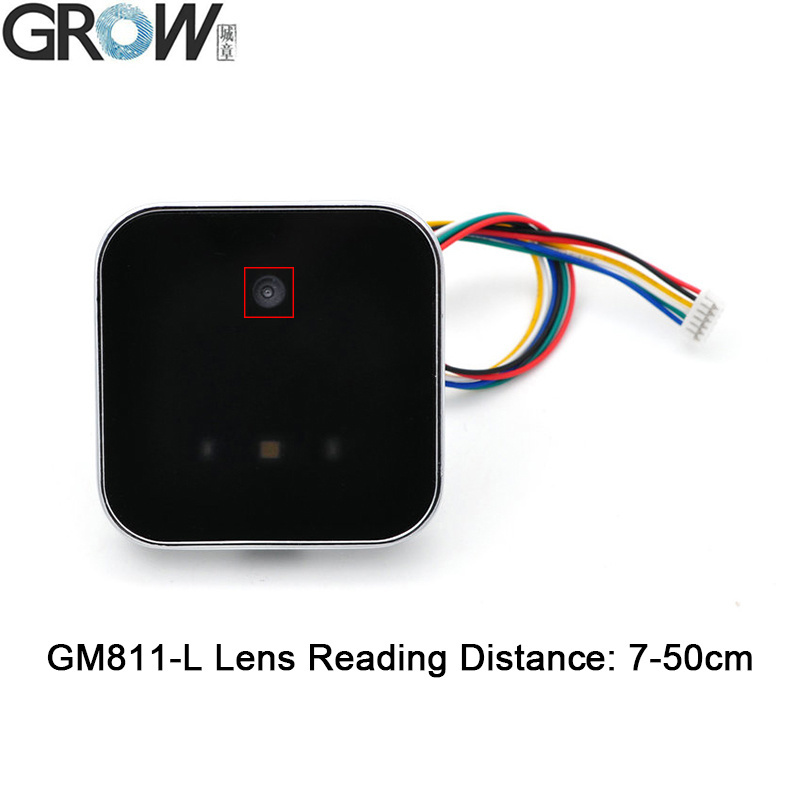

    GM811-L lens reading distance is 7-50cm.

    (The actual data depends on the size and content of the code)

    GM811 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

    GM811 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

    Specifications

    ParameterPerformance
    SensorCMOS
    Scan Mode640*480
    LightingWhite LED
    Power OnGreen LED
    Indicator LightBlue LED

    Read Code Type
    1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128,
    Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
    Matrix 2 of 5, Code 39,Code 11, MSI-Plessey,
    GS1 Composite,GS1-Databar (RSS)

    2D: QR Code, Data Matrix, PDF417
    GM811-S
    Reading Distance

    5-30cm
    GM811-L
    Reading Distance

    7-50cm
    Contrast*>25%
    Scan Angle**Roll: 360° Pitch: 65° Yaw: 65°
    Viewing Angle67° (Horizontal) 53° (Vertical)
    Accuracy of reading*≥10mil

    Mechanical/electrical Parameters:
    ParameterPerformance
    InterfaceTTL-232/USB
    Size(mm)50*50 mm
    Weight68 g
    Prompting modeBuzzer LED Indicator
    Operating Voltage5V
    Operation Current≤70mA
    Continuous Reading Peak Current≤120mA
    Standby Current≤6mA(Typical)
    Startup time≤250mS (Typical)

    Environmental Parameters:
    ParameterPerformance
    Operatingtemperature-20ºC~60ºC
    Storage Temperature-40ºC~+70ºC
    Operating Humidity5%~95%(Non-Condensing)
    Environmental LightNormal indoor light source
    FallWithstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

    Files

    ·Provide User Manual
