GROW GM77-S 640*480CMOS DC3.3V USB UART Interface 1D 2D Bar Code Qr Code Scanner Module Reader Passport Code Readable Arduino

Ask Lasest Price
Certification :	CE
Delivery Time :	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms :	T/T,PayPal
Supply Ability :	5000

Add to Cart

Product Details
Company Profile

GROW GM77-S 640*480CMOS DC3.3V USB UART Interface 1D 2D Bar Code Qr Code Scanner Module Reader Passport Code Readable Arduino

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

9. Scan Speed:15m/min

10. Can Read Long PDF417 Passport Code

Specifications

Scanning Performance	Scan Mode		640*480 CMOS

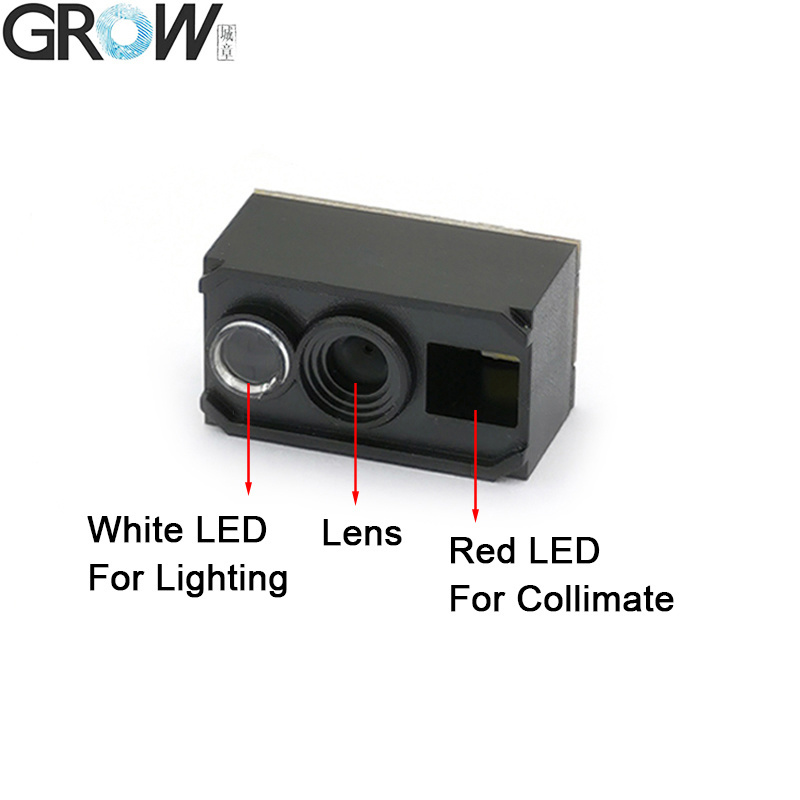

	Lighting		White LED
	Collimate		Red LED
	Read Code Type	2D	QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
			Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
			GS1 Databar ,Code 11,Industrial 25,
			Standard 25,Plessey, Matrix 2 of 5
	Accuracy of reading		≥4mil
	Depth of Field	EAN-13	50mm-220mm (13mil)
		Code 39	40mm-90mm (5mil 10 byte)
		QR Code	25mm-200mm (20mil 16 byte)
		Data Marix	50mm-90mm (10mil 20 byte)
		PDF417	30mm-130mm (6.67mil 7 byte)
	Contrast		≥25%
	Scanning angle		Intersection angle 360°,Elevation ± 55° Deflection angle ± 55°
	Viewing Angle		Horizontal:47°Vertical:36°
Mechanical/ Electrical Parameters	Interface		TTL-232 , USB (HID-KBW, Virtual serial port)
	Dimension		21.61213.2mm
	Operating Voltage		DC 3.3V
	Operating Current		180mA
	Standby Current		USB:50mA; TTL:10mA
Environmental Parameters	Operating Temperature		-20ºC~+50ºC
	Storage Temperature		-40ºC~+70ºC
	Operating Humidity		5%~95%(Non-Condensing)
	Environmental Light		0~100000LUX

Files

·Provide User Manual
