GROW GM69PRO-S 1280*800CMOS OCR/1D/2D Barcode Scanner Module Support OCR Passport Code

Description

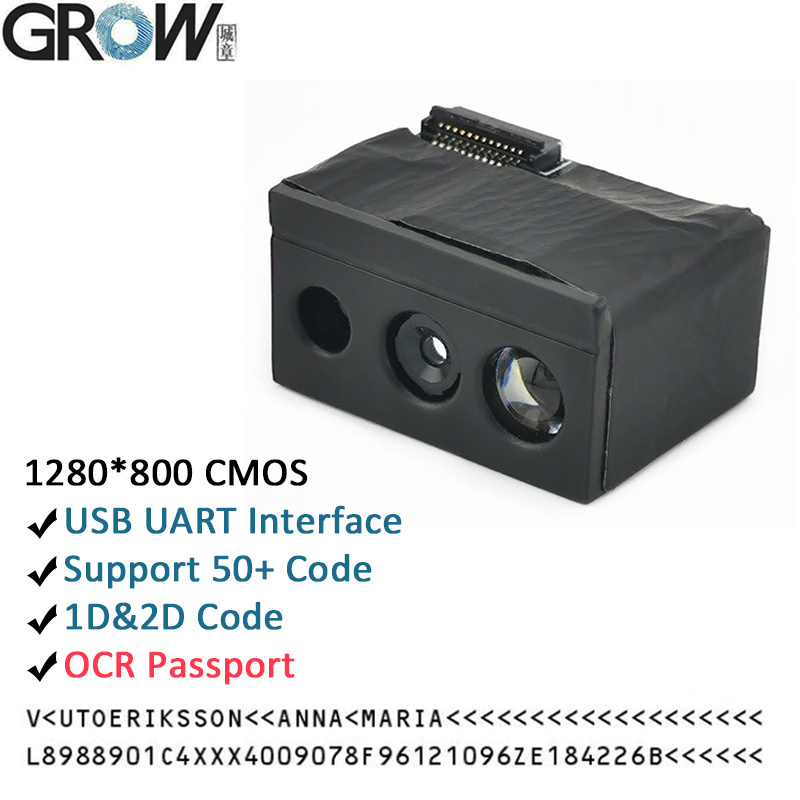

GM69Pro-S can read 50+ codes type, including bar code and qr code and OCR passport. It use 1280*800 CMOS, can read high density code, have USB and UART interface.
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms

Specifications

Scanning Performance	Interface		USB(USB-KBW,USB-COM,HID-POS),TTL-232
	Image sensor		CMOS, Global
	Pixel		1 million pixel
	Resolution		≥3mil/0.076mm (PCS90%,CODE 39)
	Read Mode		Manual Mode,Induction Mode,Continuous Mode
	Prompting mode		LED, Buzzer
	Read Code Type	2D	QR code,Micro QR,Data Matrix,PDF417,Micro PDF417 Maxi Code,Aztec Code,Hanxin Code,Pharma Code,Codablock A Code,Codablock F Code,Code16K, Code49,Dot Code,Grid Matrix,Australian Post,British Post,USPS Intelligent Mail,Japanese Post,Planet Code,Postnet Code,UPU 4-State,KIX Code,etc.
		1D	UPC-A,UPC-E0,UPC-E1,EAN-8,EAN-13,ISBN,ISSN, Code 128,GS1 128,ISBT 128,Code 39,Code 32 Pharmaceutical,Code 93,Code11,Codabar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5, NEC 2 of 5,MSI Plessey,UK Plessey,Posi Code,Telepen Trioptic,BC412,Febraban,Coupon,HongKong 2 of 5(China Post),Korea Post,GS1 DataBar 14 (RSS-14) GS1 Databar Limited,GS1 Databar Expanded GS1 Composite Code,TLC 39 Code,OCR
	Depth of Field		40mm~900mm (different bar code range)
	Decode speed		65CM/S
	Contrast		≥20%
	Scanning angle		Test Conditions:CODE39,10mil/0.25mm,PCS90% Roll: ±360°, Pitch:±60°, Skew: ±55°
	Viewing Angle		H:42° V:27° opposite angles: 49°
Mechanical/ Electrical Parameters	Weight		3.8g
	Dimension		21.5mm L* 15.9mm W * 11.30mm H
	Operating Voltage		DC 3.3V
	Current		200mA(Average Work), 95mA(Standby), 38mA(Sleep)
Environmental Parameters	Operating Temperature		-20ºC~+50ºC
	Storage Temperature		-40ºC~+60ºC
	Operating Humidity		5%~95%(Non-Condensing)
	Environmental Light		0~100000LUX

Files

·Provide User Manual
