    GROW R503PRO UART USB 1500 Capacity Round RGB LED Control DC3.3V Capacitive Fingerprint Module Sensor Scanner


    Grow R503PRO Uart/USB 1500 Capacity DC3.3V Fingerprint Module Sensor Scanner

    Description

    1. Integrated image collecting and algorithm chip together, ALL-in-One
    2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
    3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box


    R503Pro fingerprint module have R503Pro-UART and R503Pro-USB type. It have 1500 capacity.


    R503
    R503-5V
    R503-M22
    R503Pro
    R503S
    Power Supply
    DC 3.3V
    DC 5V
    DC 3.3V
    UART:DC 3.3V
    USB:DC 5V
    DC 3.3V
    Sensing Array
    192*192 Pixel
    192*192 Pixel
    192*192 Pixel
    192*192 Pixel
    160*160 Pixel
    Fingerprint Capacity
    200
    200
    200
    1500
    150
    Size
    M25
    M25
    M22
    M25
    M25
    Connector
    SH 1.0mm 6pin
    MX 1.25mm 6pin
    SH 1.0mm 6pin
    SH 1.0mm 6pin
    SH 1.0mm 6pin



    R503 Specifications

    Model
    R503Pro
    Type
    Capacitive Fingerprint Module
    Interface
    UART(TTL)/USB
    Resolution
    508 DPI
    Voltage
    R503Pro-UART: DC 3.3V R503Pro-USB: DC 5V
    Fingerprint Capacity
    200
    Sensing array
    192*192 pixel
    Working current
    20mA
    Standby current
    Typical touch standby voltage: 3.3V, Average current: 2uA
    Fingerprint module external size
    Diameter 28 (mm)
    Fingerprint module inner size
    Diameter 25 (mm) (M25)
    Fingerprint module height
    19 (mm)
    Effective collection area
    Diameter 15.5 (mm)
    Connector
    SH1.0-6Pin

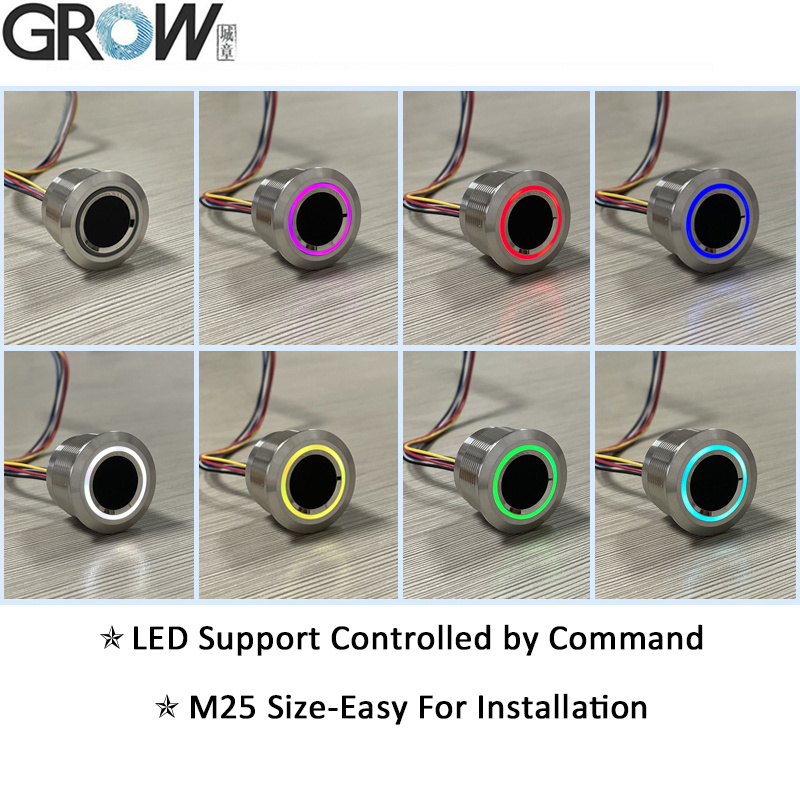

    LED Control
    YES
    LED Color
    RGB
    Scanning Speed
    < 0.2 second
    Verification Speed
    < 0.3 second
    Matching Method
    1:1; 1:N
    FRR
    ≤1%
    FAR
    ≤0.001%
    Work environment
    -20C ---60C
    Work Humidity
    10-85%
    Anti-static capacity
    15KV
    Abrasive resistance intensity
    1 million times
    Communications baud rate (UART):
    (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

    Files

    ·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
    ·Provide User Manual



    R503Pro video on Youtube: https://youtu.be/E754yIjn80Q


    If need SDK files,pls contact us.
